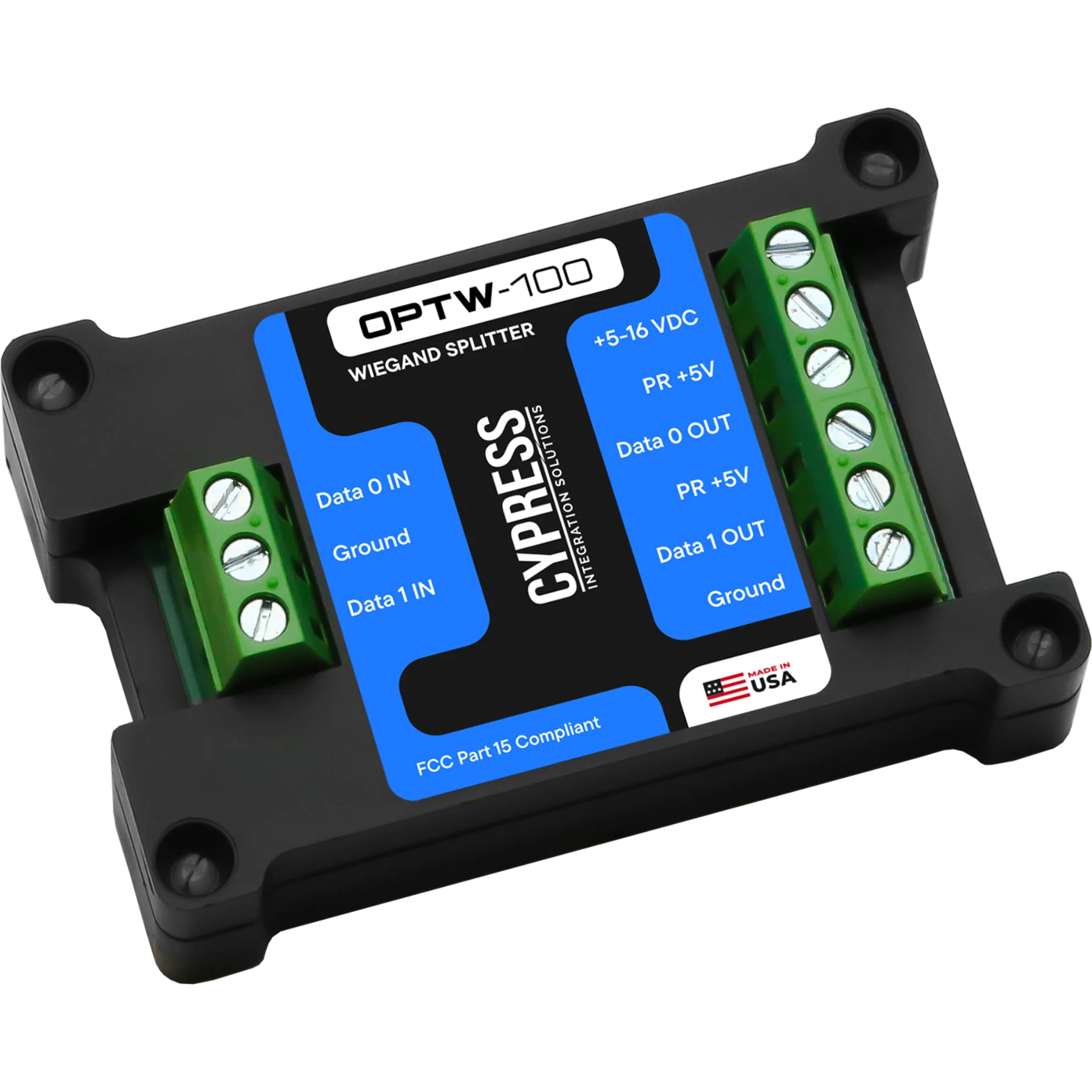

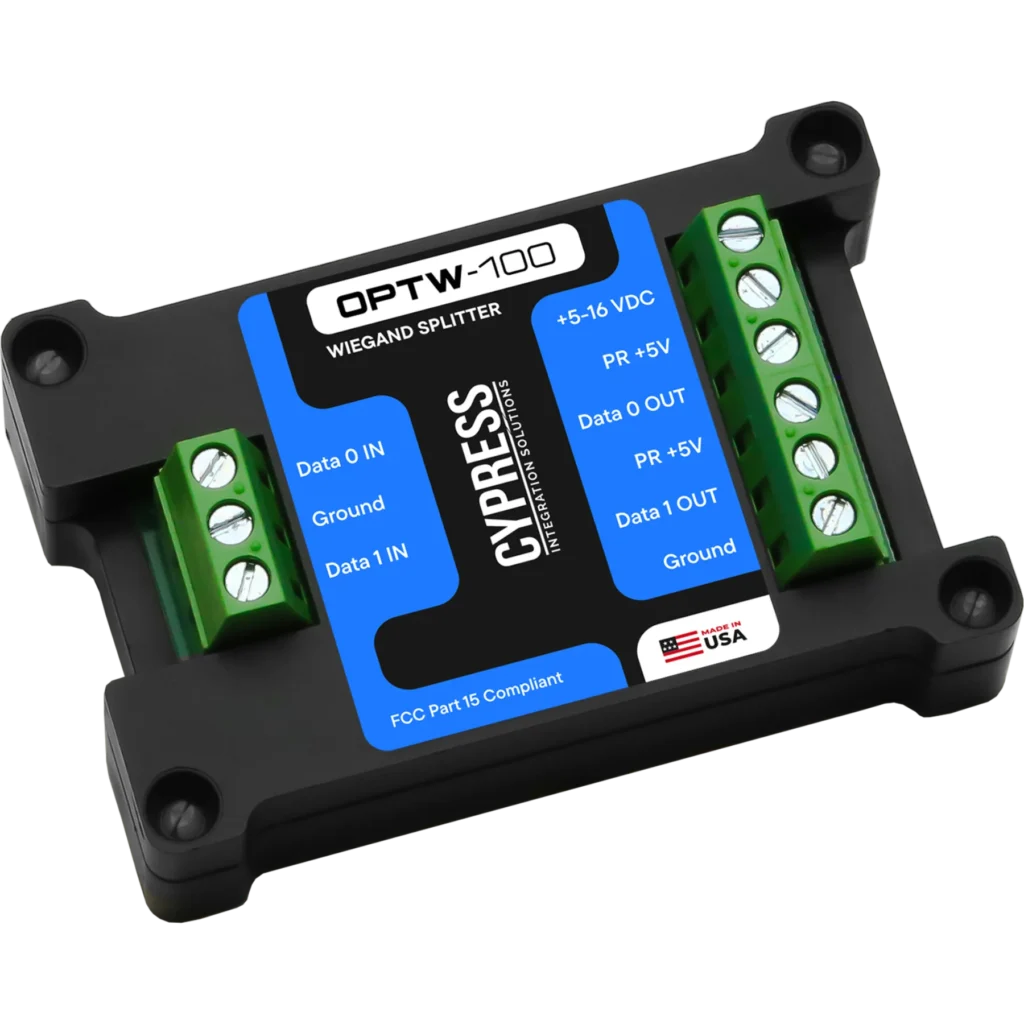

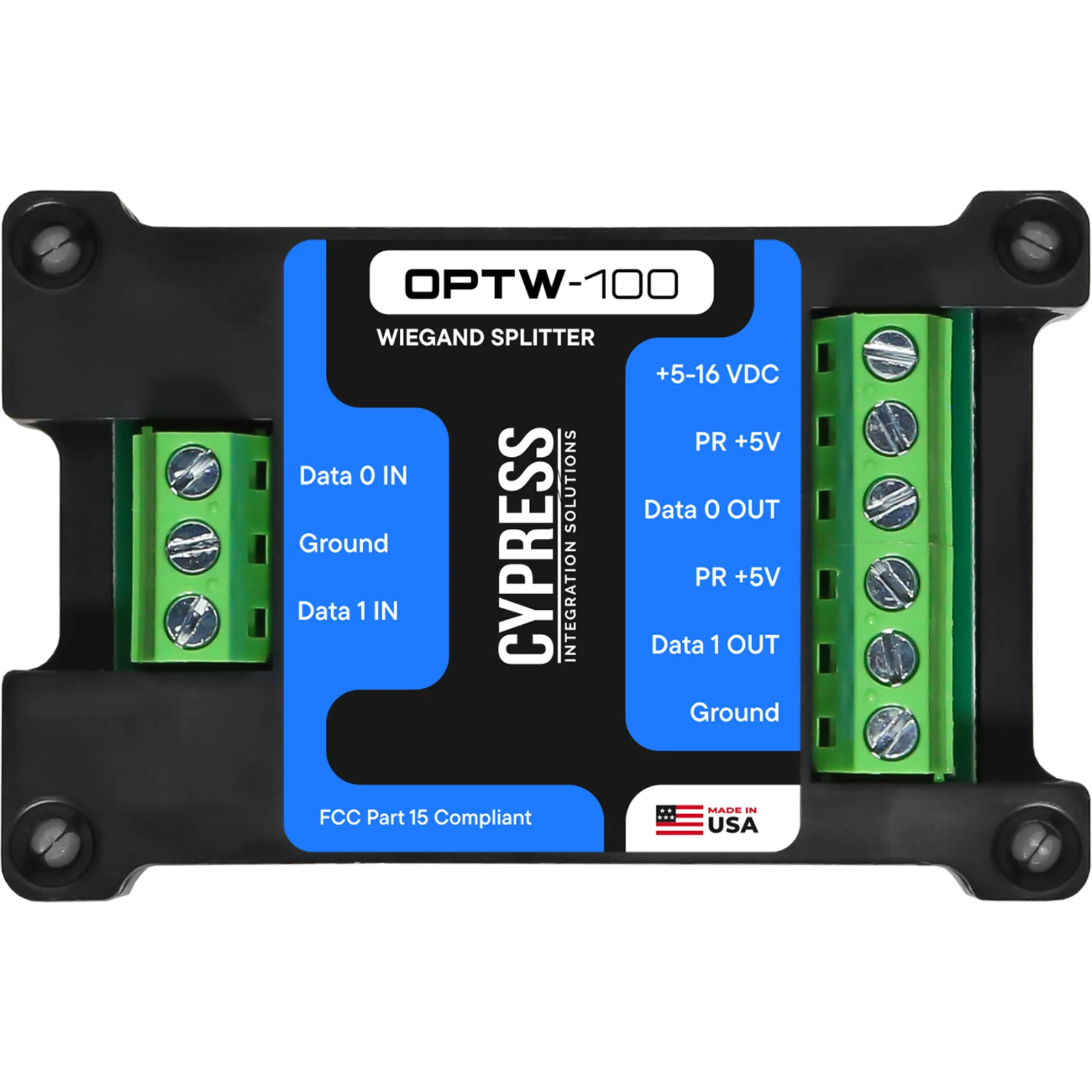

OPTW-100 · Wiegand interfaces
Wiegand Splitter
StandardIsolates and splits Wiegand signals between connected devices.
- Signal interface
- Wiegand
- Signal handling
- Isolation
- Typical applications
- 3
- Supports documented reader / panel splits
- Provides Wiegand signal isolation
Where to Buy
Overview
Connect Wiegand devices cleanly
The OPTW-100 provides Wiegand signal isolation for documented reader and control-panel configurations. Applications include an isolated reader connection, one reader connected to two panels, and two readers connected to one panel input. The diagrams below show where the isolator is placed in each arrangement.
Isolate a reader connection
- ReaderWiegand
- OPTW-100Wiegand
- Control panel

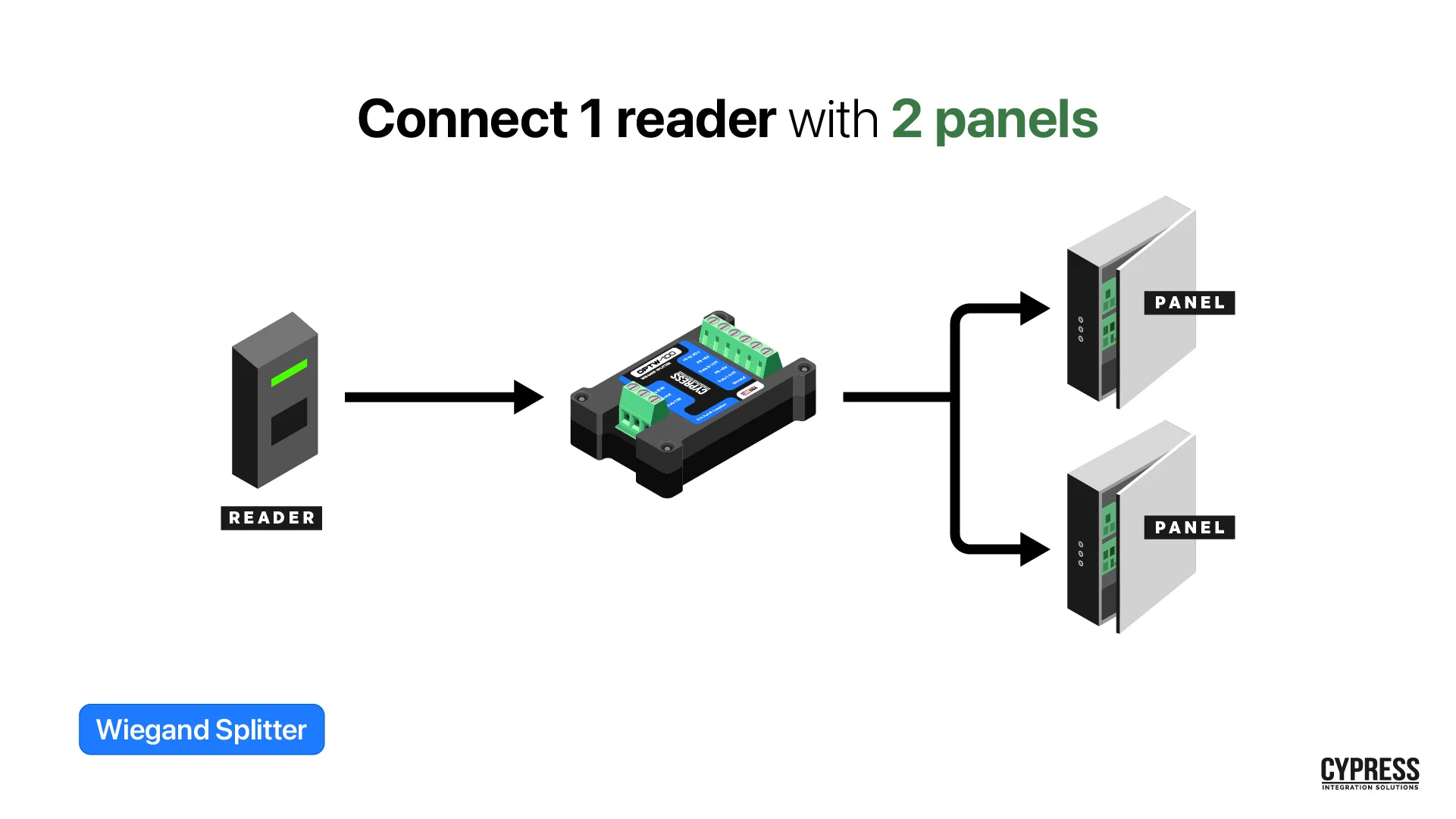

One reader. Two panels.
- ReaderWiegand
- OPTW-100

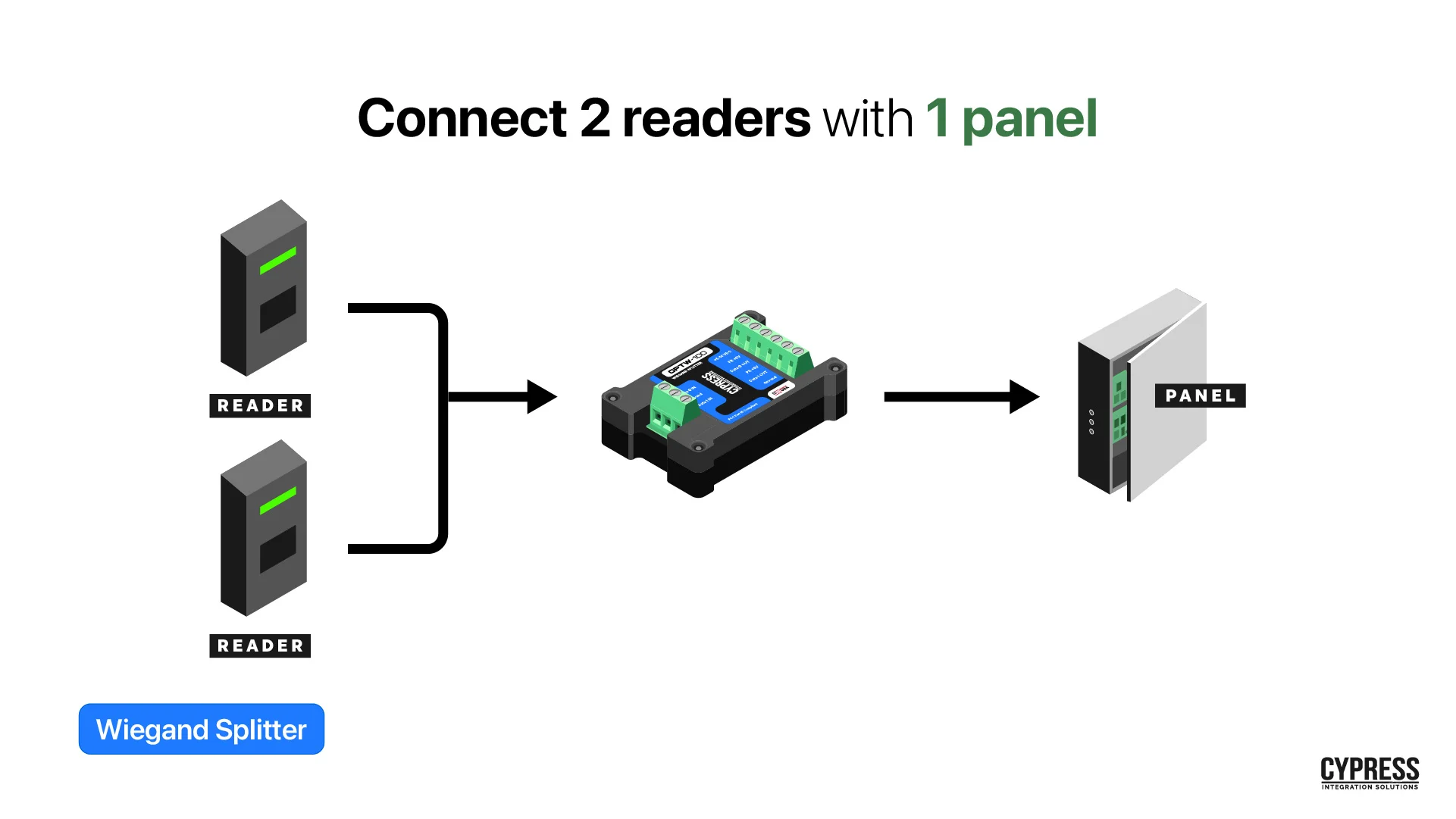

Two readers. One panel input.
- OPTW-100Wiegand
- Control panel
Specifications
- Reader interfaces
- Wiegand
- Mounting
- Panel Mount, Surface Mount
- Power type
- 5–16 VDC
