Fiber ExtenderMulti-mode

,

SPX-7400

Connects a reader and its door I/O over fiber (multi-mode), up to 2.4 miles. Add more readers with EXP-2000 Expansion Pairs.

The SPX-7400 connects 1 reader and associated door/gate hardware using multi-mode fiber, to any Wiegand or MagStripe based control panel. It also supervises the connection with negligible bandwidth usage. The base pair supports a single door and reader. The EXP-2000 expansion module allows addition of as many as 7 doors and readers over the same fiber optic connection. Includes both remote and central units.

UPC# 816684003127

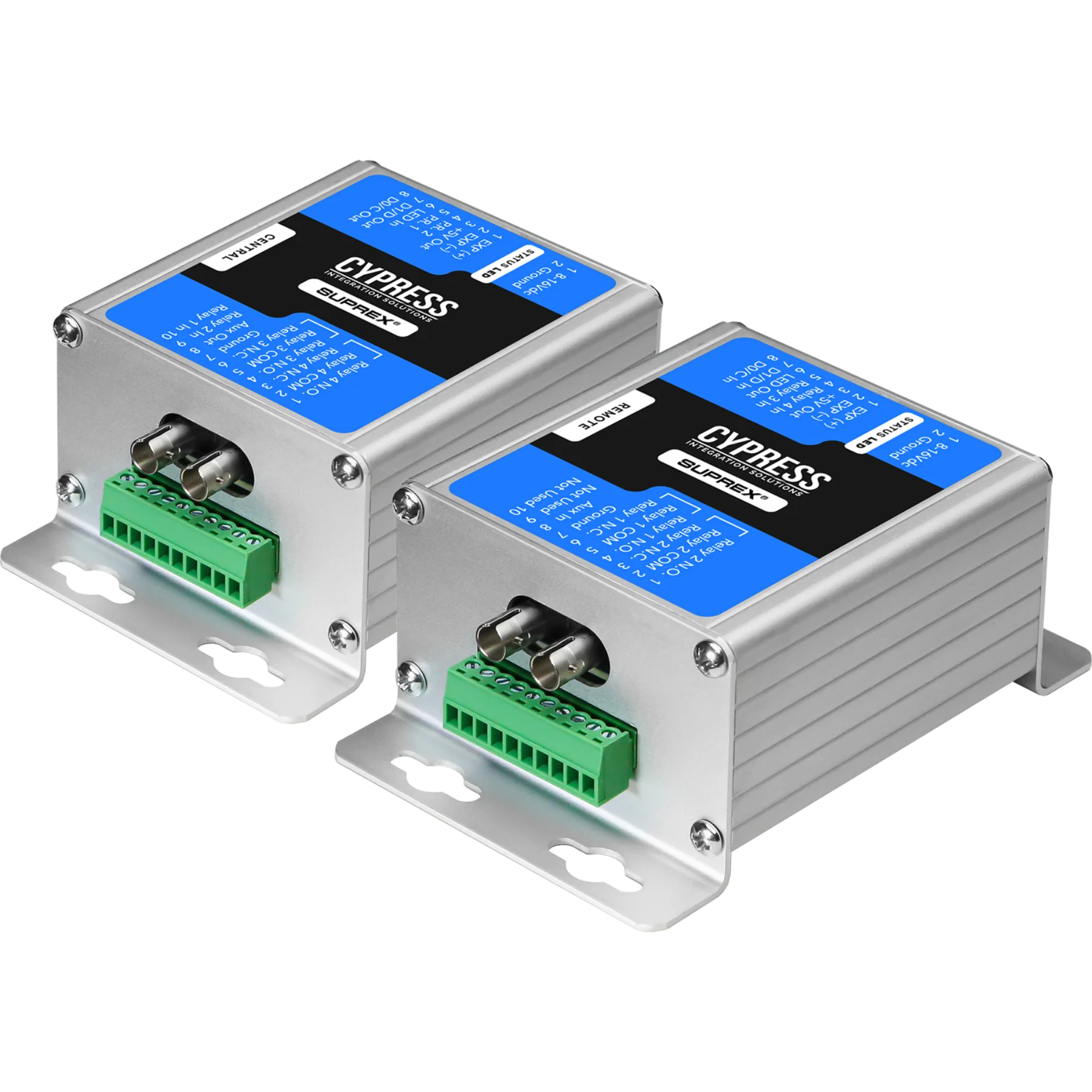

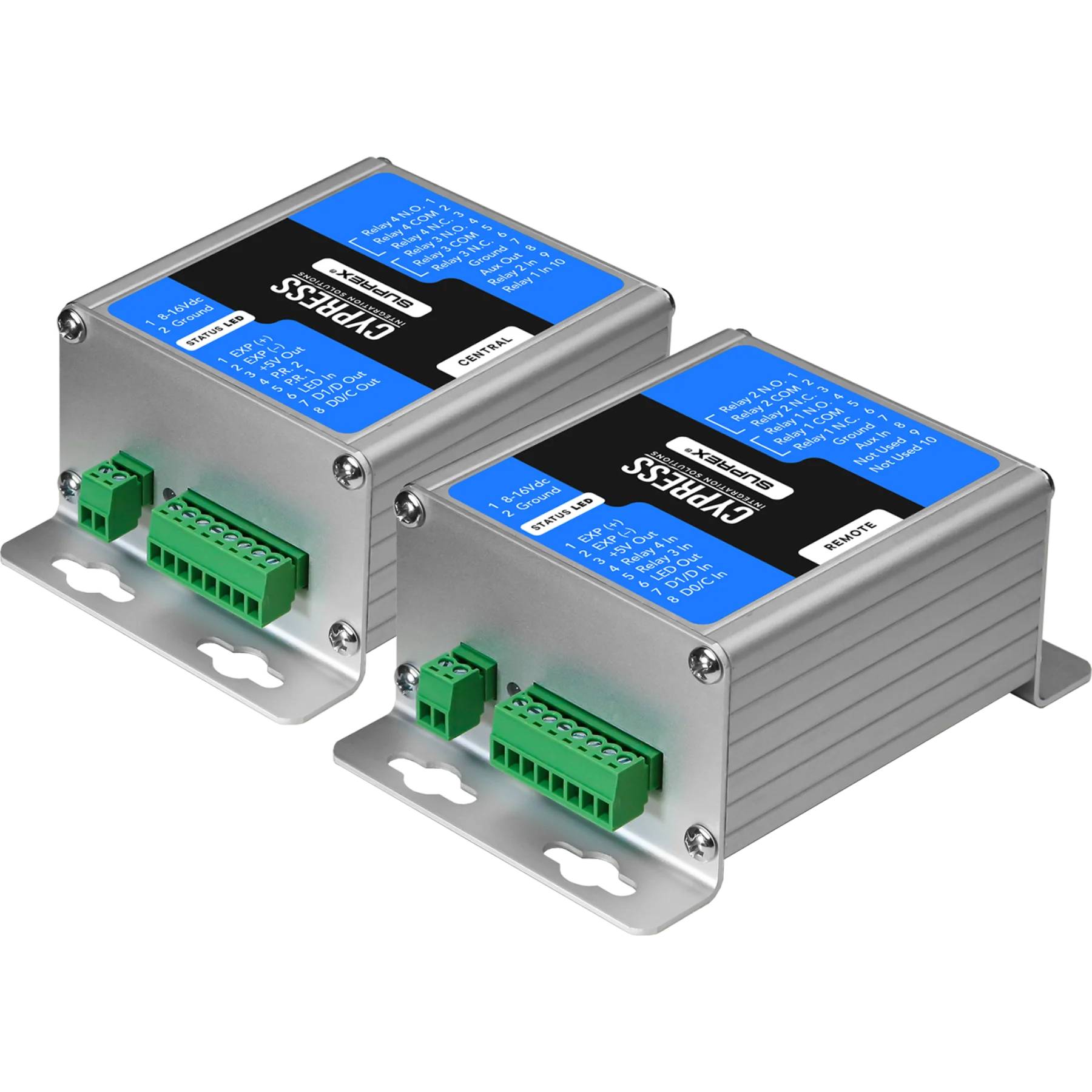

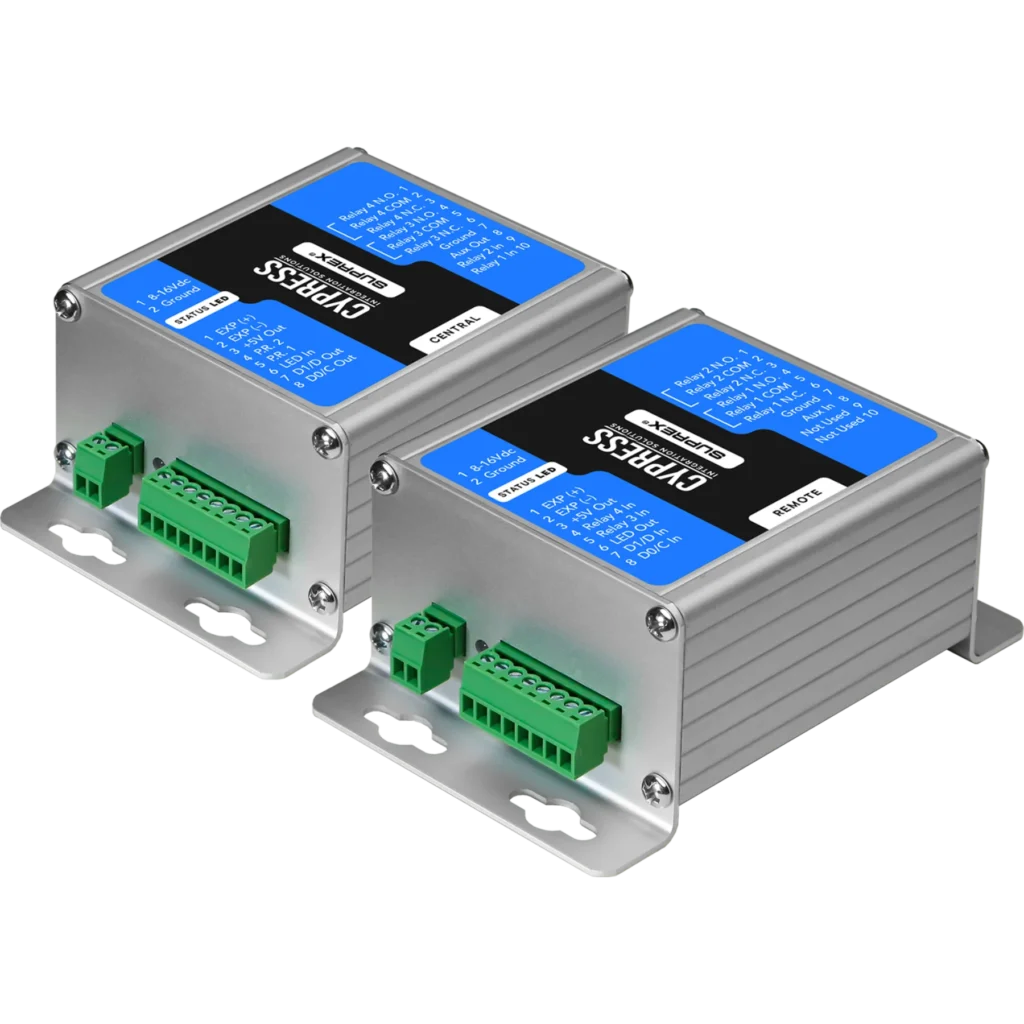

Suprex Fiber Optic Reader Extender Pair
Suprex Fiber Optic Reader Extender Pair
Suprex Fiber Optic Reader Extender Pair
Suprex Fiber Optic Reader Extender Pair

Product Overview

Supports one reader, but can accommodate a total of 8 Wiegand readers over the connection using EXP-2000 expansion pairs (use 1 EXP-2000 pair for each additional reader).

Features

    • Multi-mode fiber connection
    • supervised connection
    • negligible bandwidth usage
    • supports Wiegand or MagStripe panels
    • remote and central units included
Dimensions

Applications

Gates
Lightning Prone Areas
Utilize Available Fiber

Supported Reader Interfaces

MagStripe
Wiegand

Problems Solved

Extend Reader Distance
Compatible Products
Pair of EXP-2000 Suprex Expansion Modules
EXP-2000
  • Expansion Module
  • Wiegand

Adds up to seven readers to compatible Suprex extenders.
