Manual
Product Overview

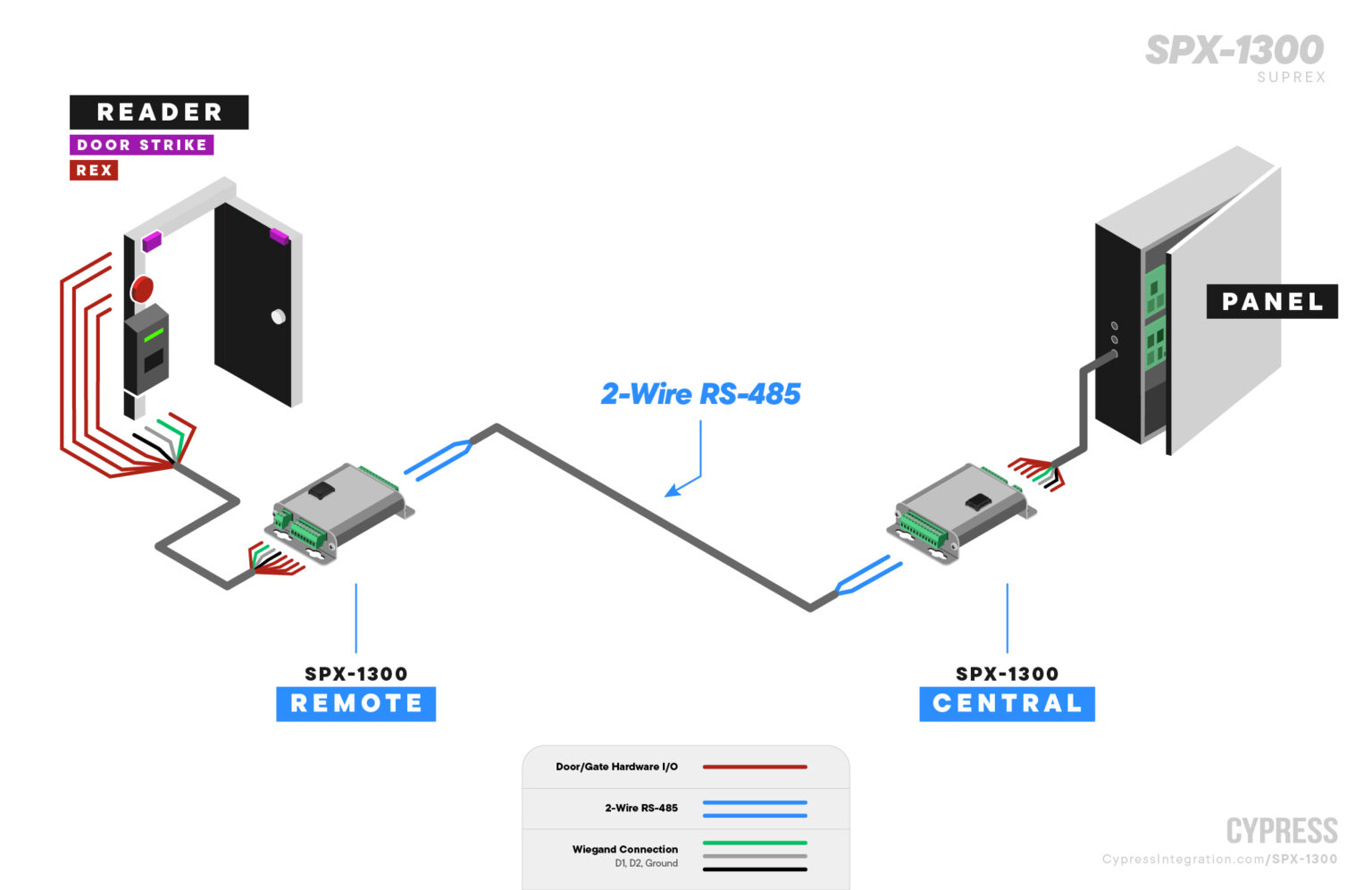

For single door applications. Not compatible with EXP-2000 Expansion Pairs. For applications connecting multiple doors over a Suprex twisted-pair RS-485 connection, use the SPX-7500.
Features

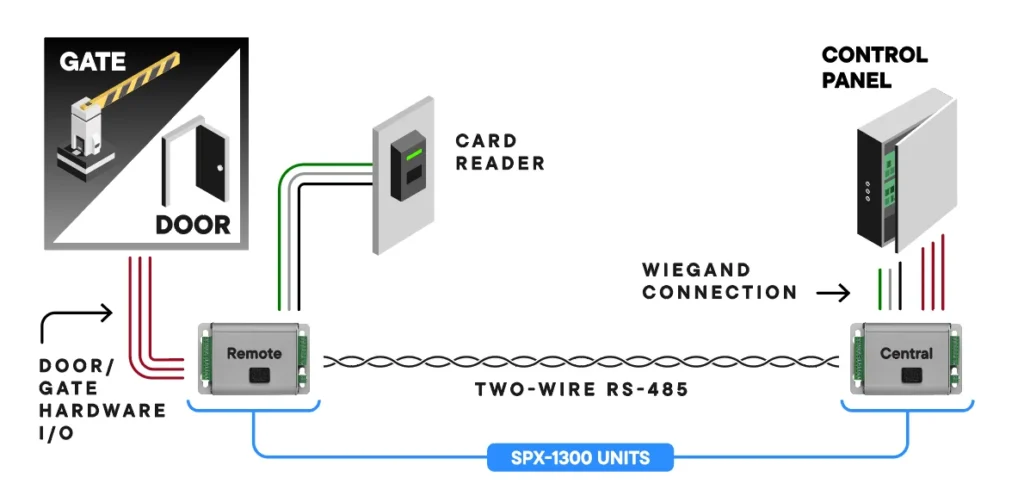

- Reader and door/gate hardware can be located up to 2 miles from the panel
- supervised connection

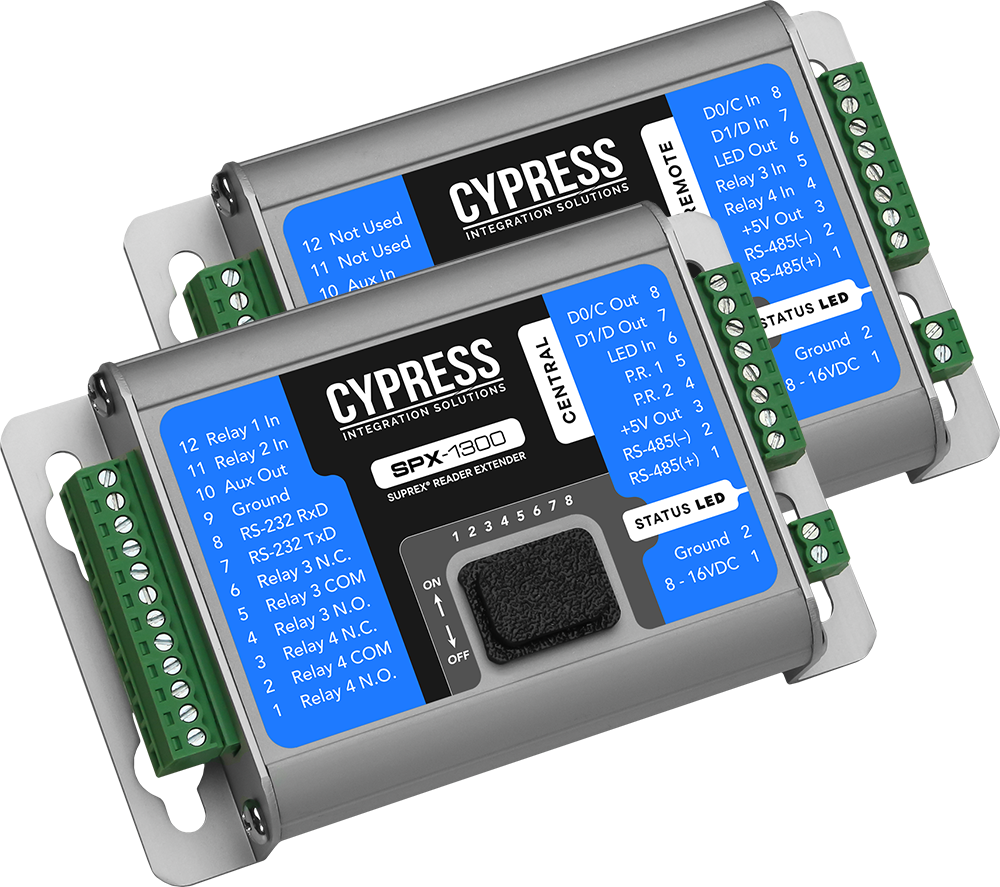

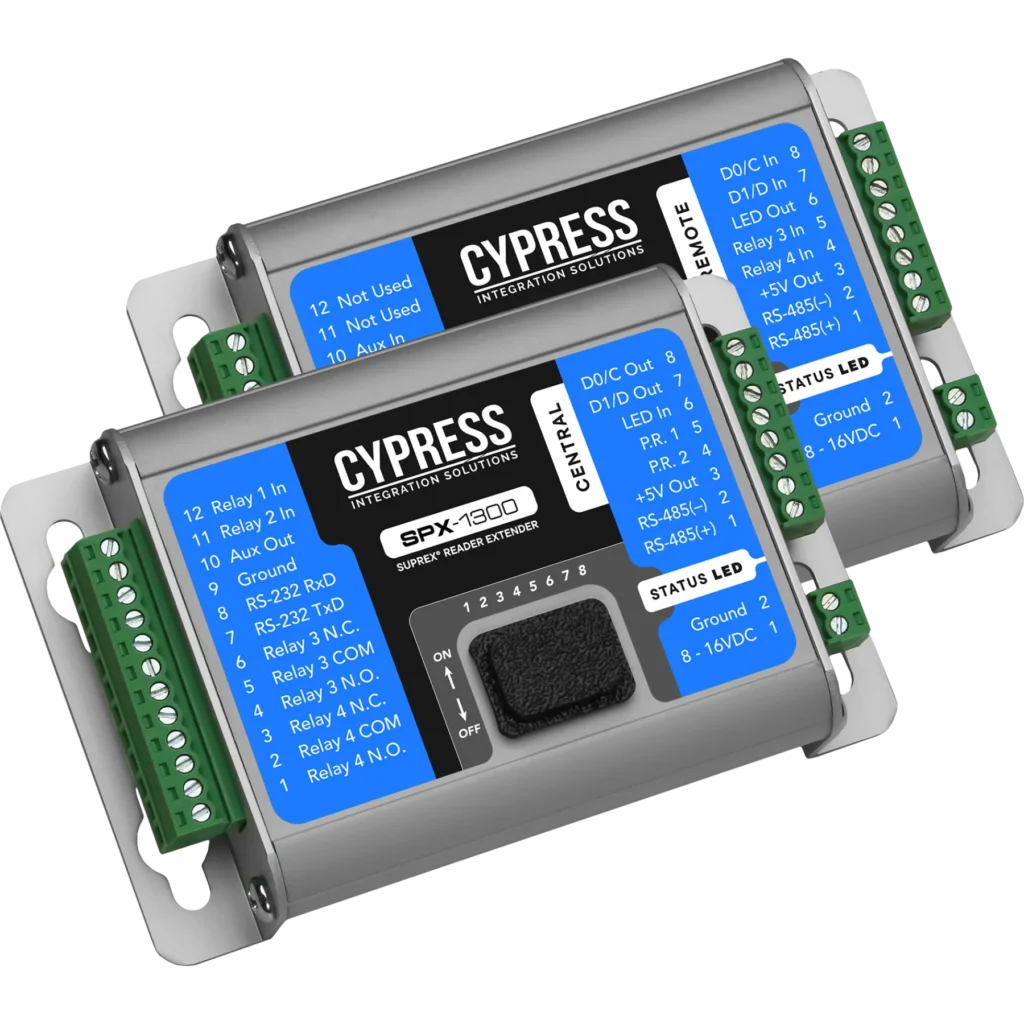

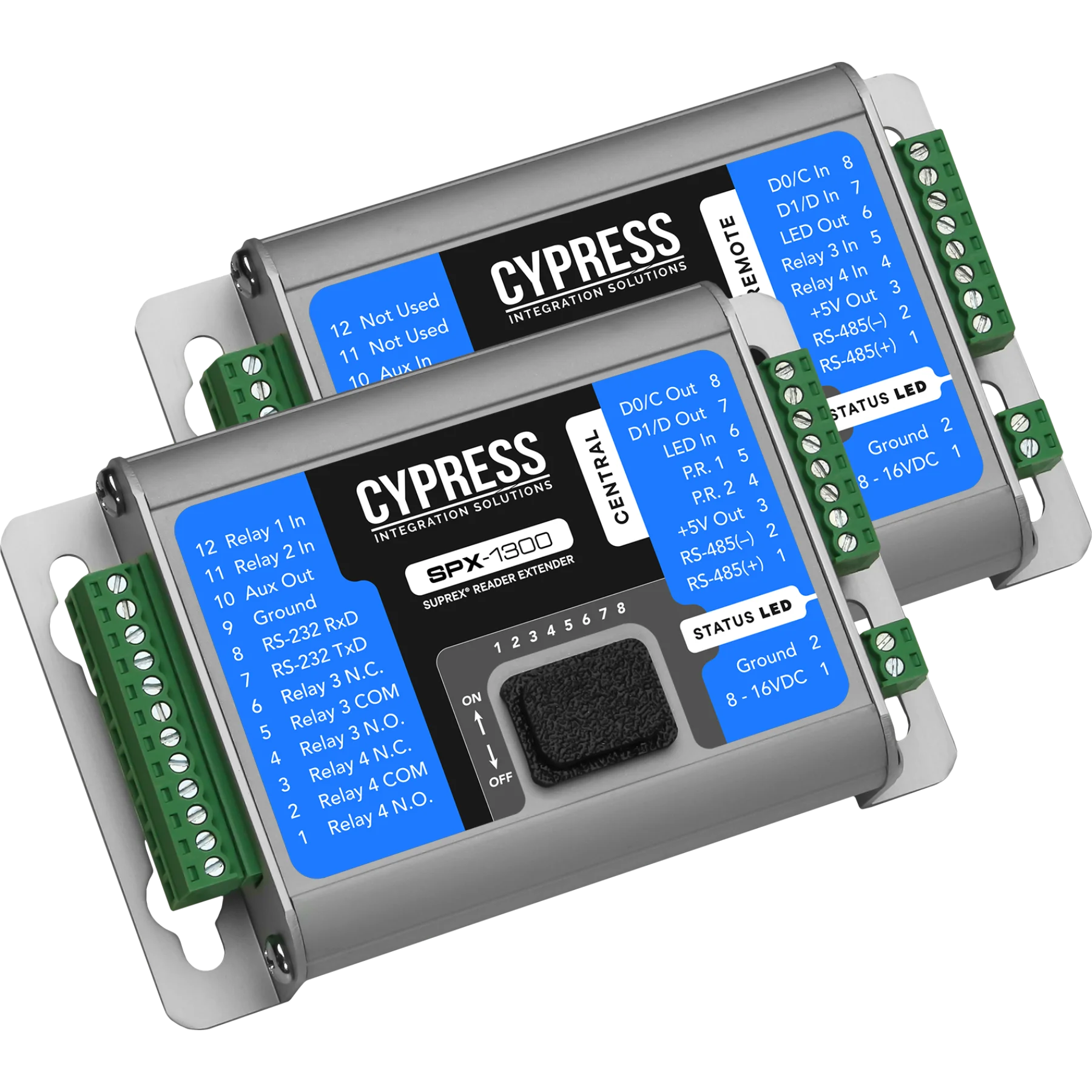

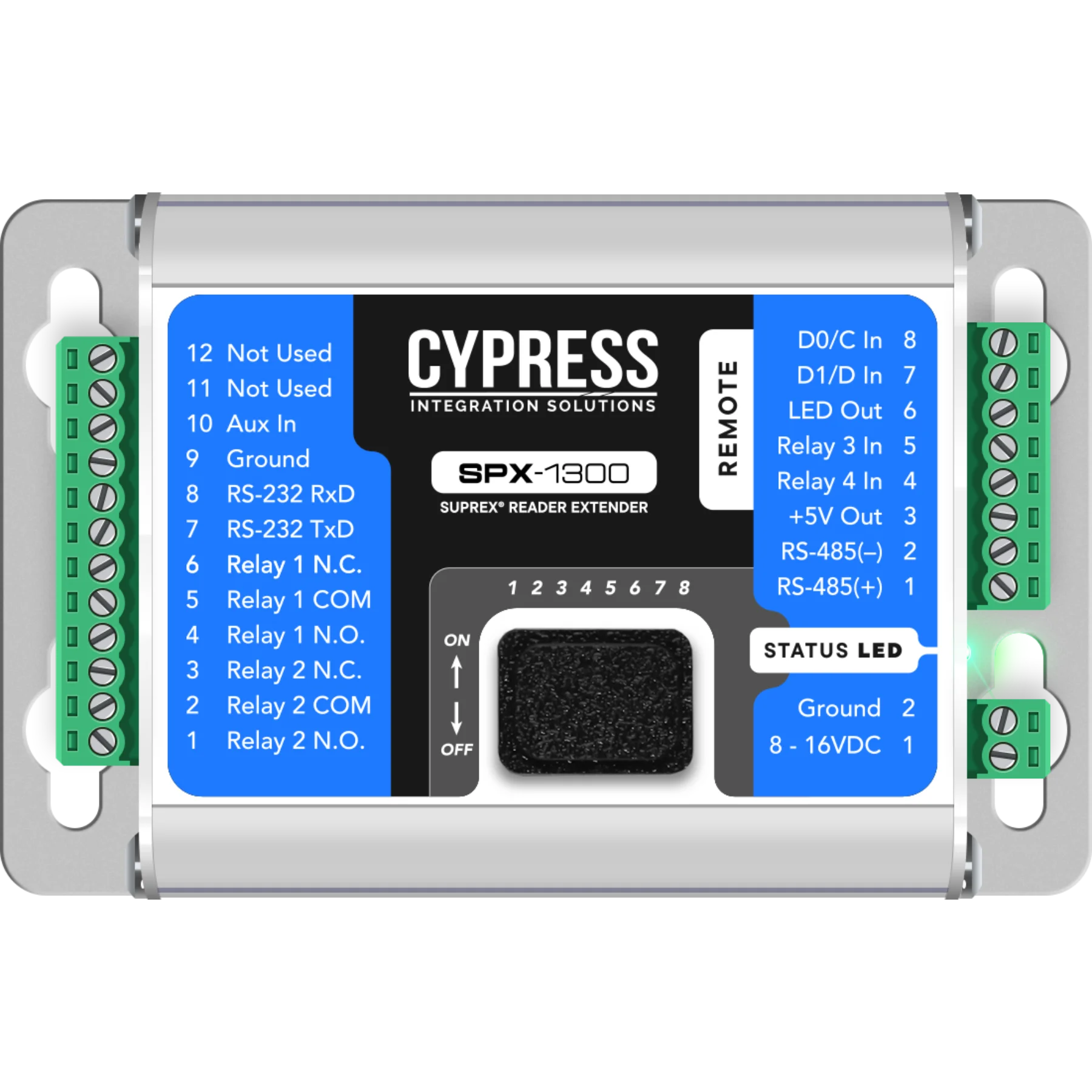

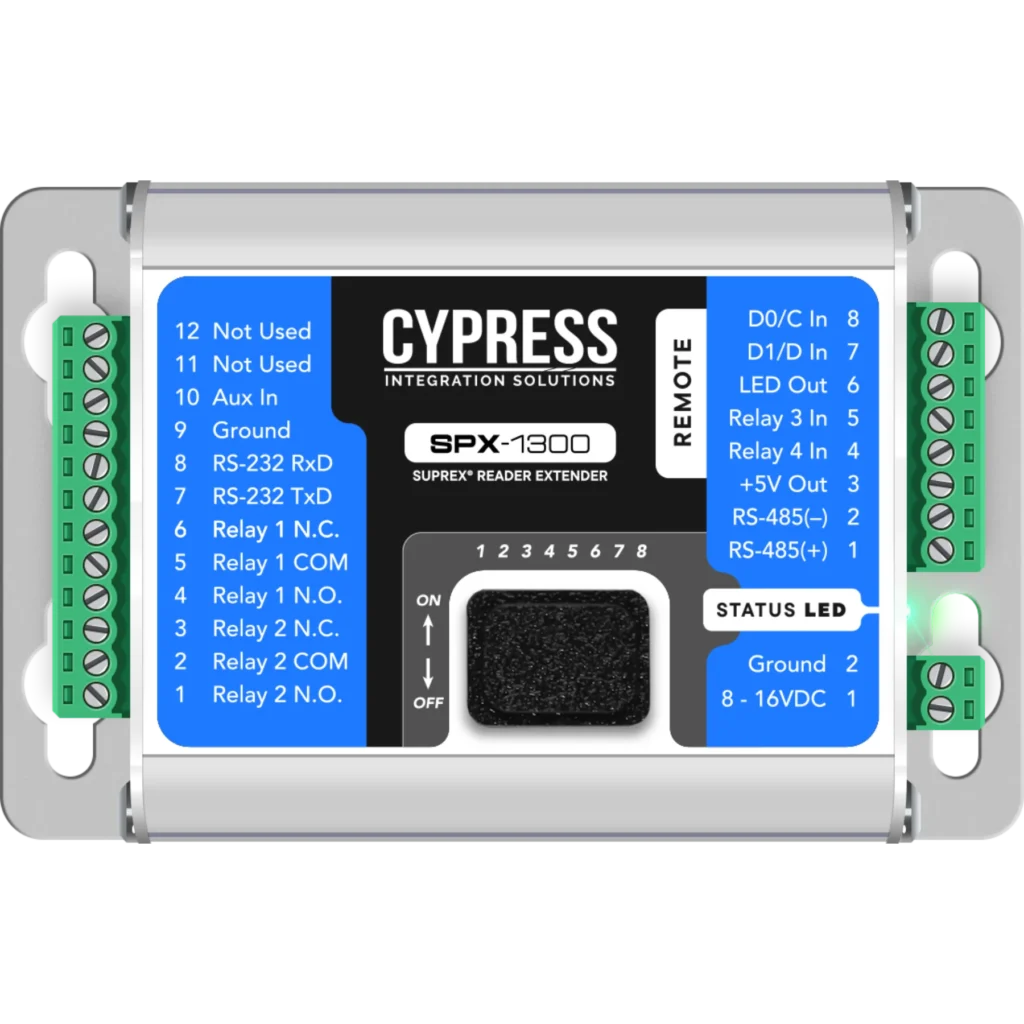

- includes remote and central units
- supports Wiegand or MagStripe based control panels
Dimensions
Applications
Doors
Elevators
Parking
Supported Reader Interfaces
MagStripe
Wiegand
Suprex Communication
RS-485 (Twisted Pair)
Power
8–16 VDC
Problems Solved

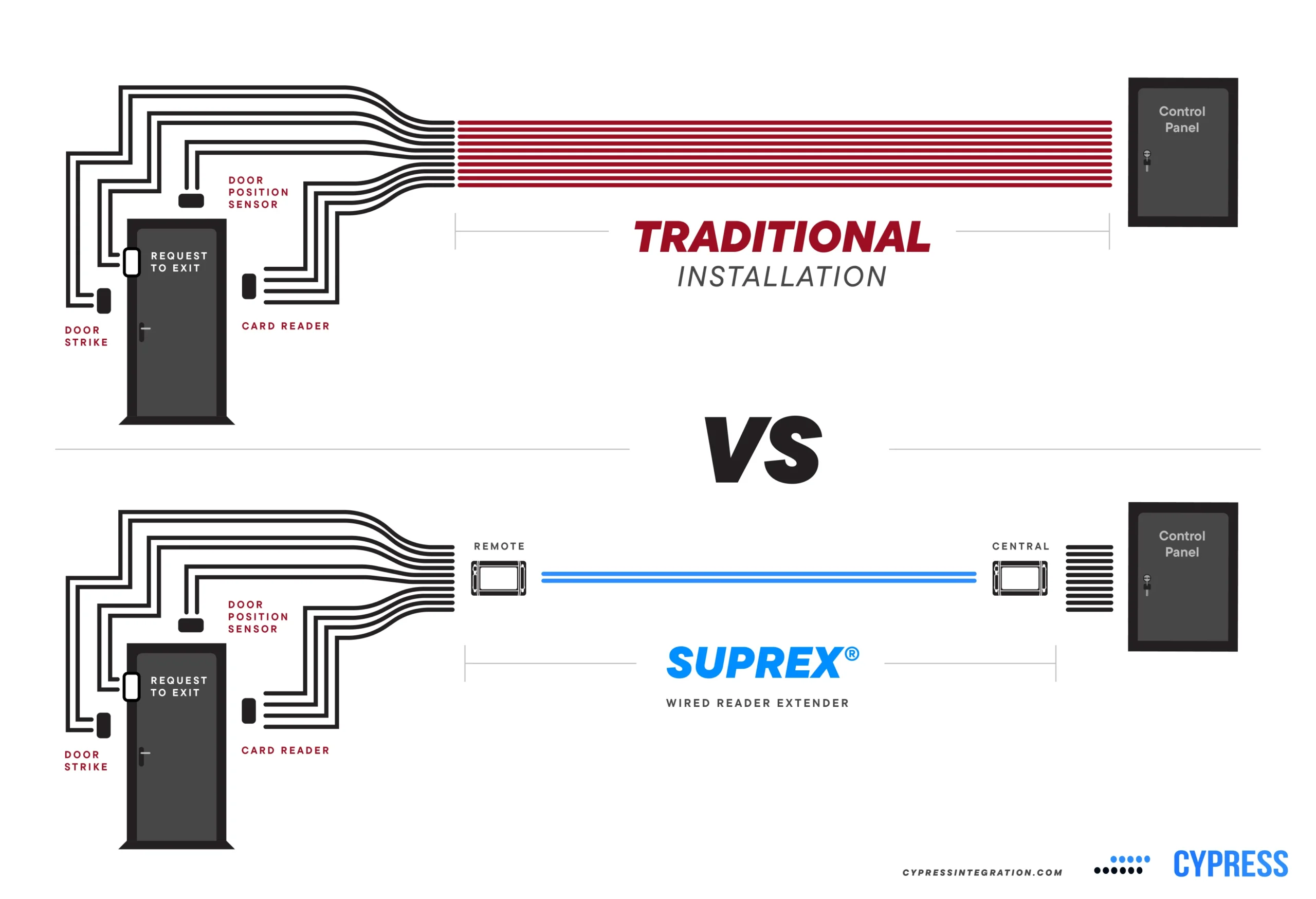

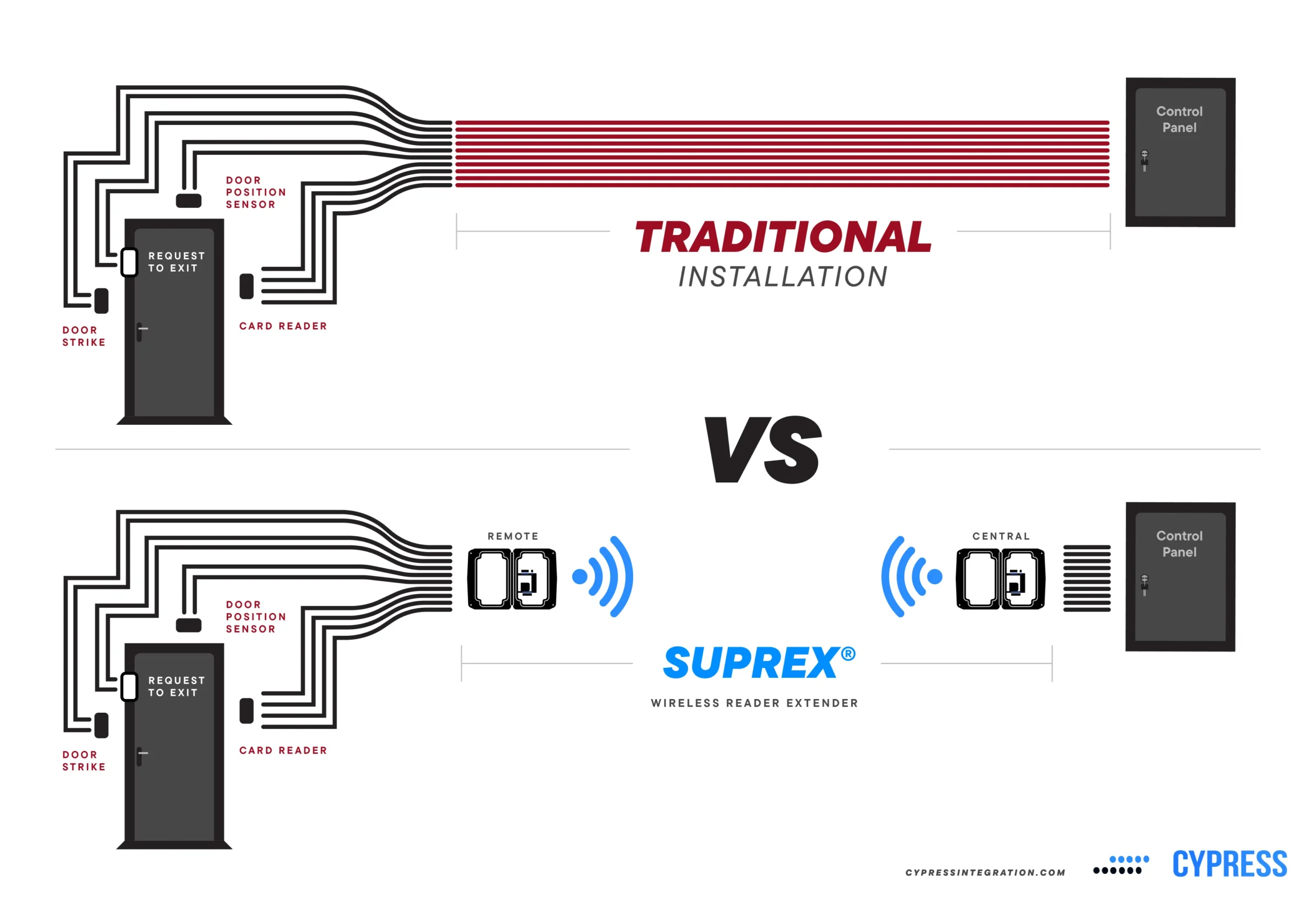

Extend Reader Distance
Compatible Products
Alternative Products

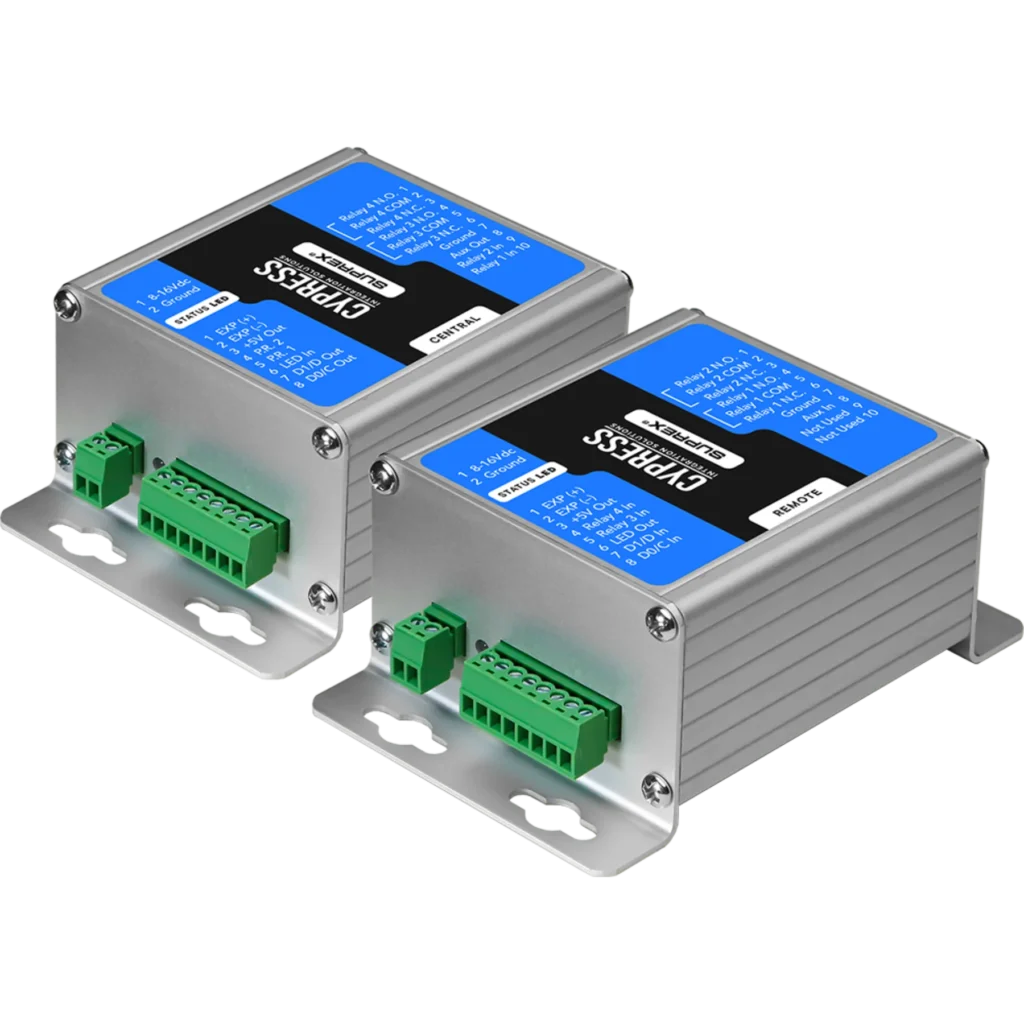

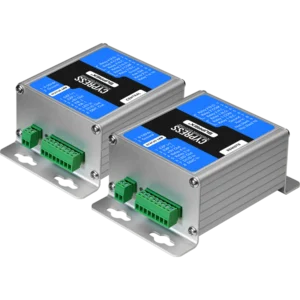

SPX-7500
Connects 1 reader and its door I/O over RS-485 (2-wire), up to 4,000 ft. Add more readers with EXP-2000 Expansion Pairs.

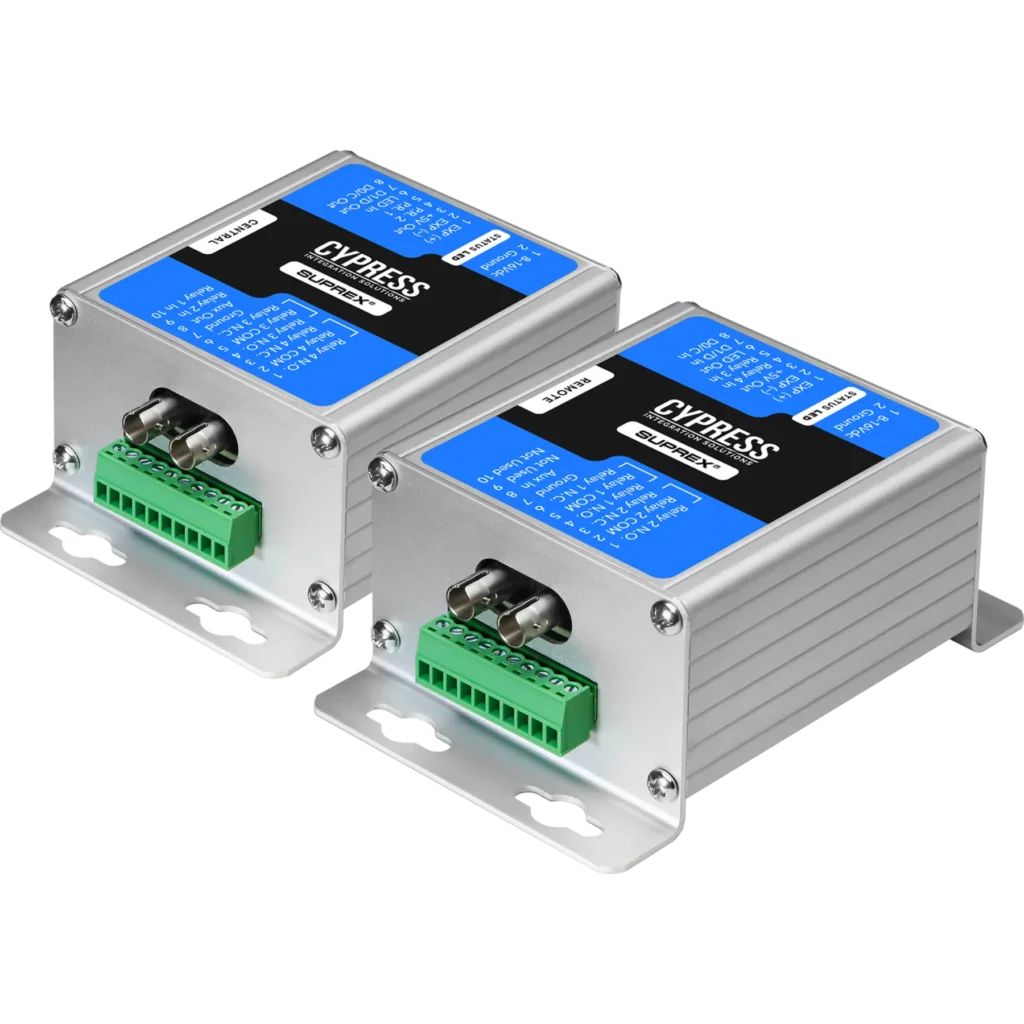

SPX-7420
Connects a reader and its door I/O over fiber (single or multi-mode). Add more readers with EXP-2000 Expansion Pairs.

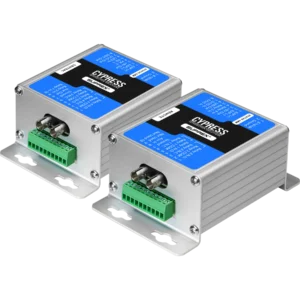

SPX-7410
Connects a reader and its door I/O over fiber (single mode), up to 24 miles. Add more readers with EXP-2000 Expansion Pairs.
