RS-485 ExtenderMulti-reader capable

Reader Extenders, All Reader Extenders

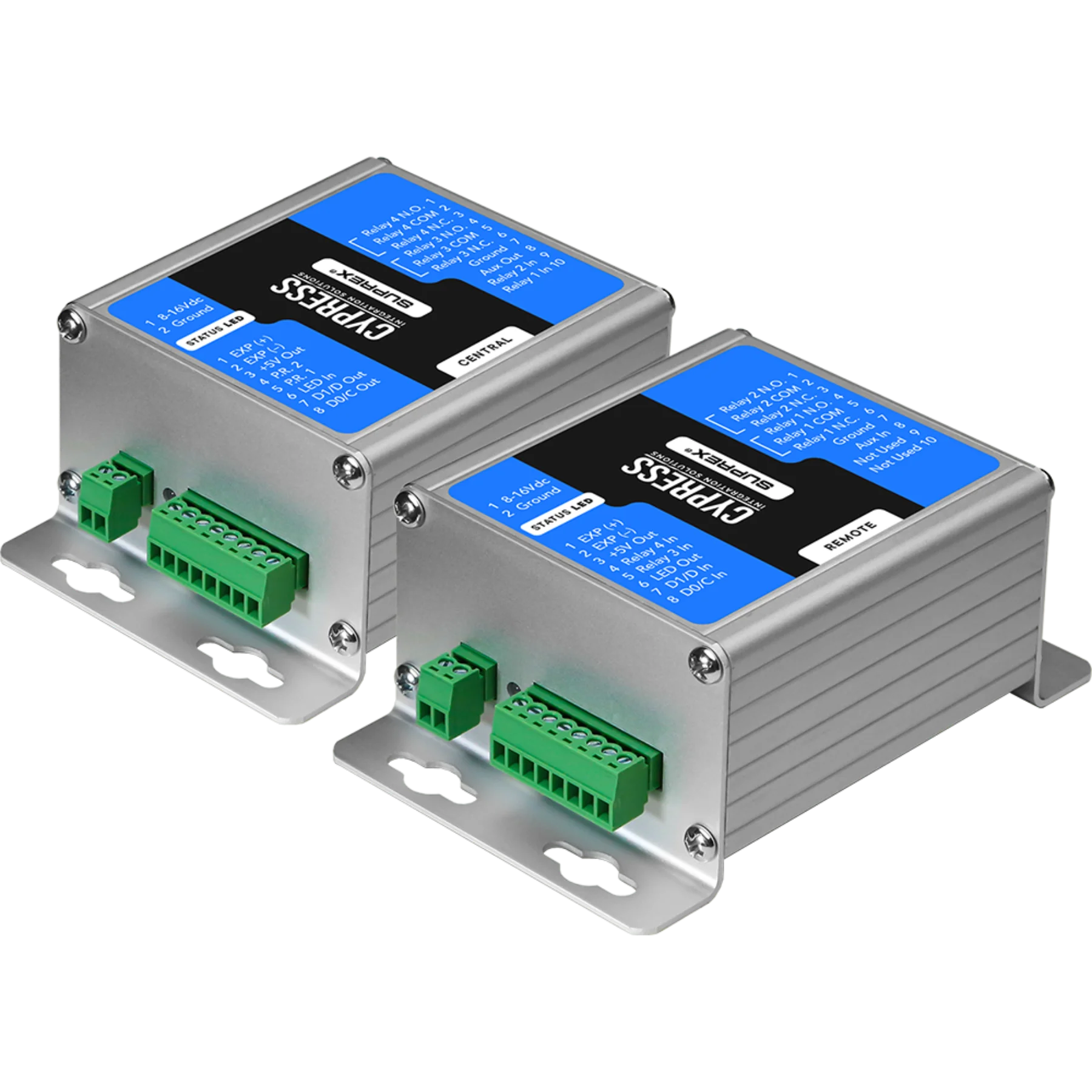

SPX-7500

Connects 1 reader and its door I/O over RS-485 (2-wire), up to 4,000 ft. Add more readers with EXP-2000 Expansion Pairs.

A member of the Reader Extender product family, the SPX-7500 connects 1 or more readers and associated door/gate hardware over any two wire cable, twisted or non-twisted, to any Wiegand or MagStripe based control panel. It also supervises the RS-485 connection. The base pair supports a single door and reader. Using Cypress Suprex technology and the EXP-2000 expansion module allows the addition of as many as 7 doors and readers over the same RS-485 connection.

UPC# 816684003103

Manual Quick Start

Suprex Twisted Pair Reader Extenders

Manual

Quick Start

Sales Sheet

Product Overview

Features

- Connects over any two wire cable
- supports 1 or more readers with expansion
- supervised RS-485 connection
- supports Wiegand or MagStripe panels

Dimensions

Supported Reader Interfaces

MagStripe

Wiegand

Suprex Communication

RS-485 (Twisted Pair)

Problems Solved

Extend Reader Distance

Compatible Products

Pair of EXP-2000 Suprex Expansion Modules

EXP-2000

Expansion Module

Wiegand

Adds up to seven readers to compatible Suprex extenders.

Alternative Products

SPX-1300 Suprex Reader Extender Pair

SPX-1300

Reader Extender

MagStripe
Wiegand

Connects 1 reader and its door I/O over RS-485 (2-wire), up to 2 miles.
