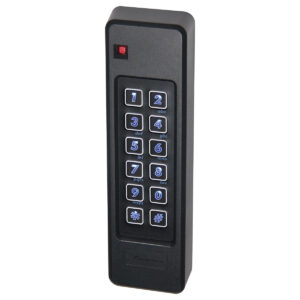

CSR-6.2L
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 2 inches (51 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- WIEGAND
- 13.56 MHz; 2.4 GHz
Farpointe product family
Farpointe CONEKT Smartcard Reader
Smartcard reader for secure contactless access credentials.
Farpointe reader/credential product entry listed under Farpointe Readers & Credentials.
Models, credentials, and kits
Compare every option in this family.
Review model-level capabilities, read ranges, ordering notes, kit contents, and shared product resources without leaving the family page.
Interactive reader selector
Choose your reader.
Select every feature your project requires. Results update to show readers that satisfy all selected requirements.
| Reader | Mobile | Smartcard | Mullion | Single-Gang | Keypad | OSDP | Details |
|---|---|---|---|---|---|---|---|
| CONEKT Smartcard | |||||||
| CSR-6.2L | Mobile: Yes | Smartcard: Yes | Mullion: Yes | Single-Gang: No | Keypad: Yes | OSDP: No | View details |
| CSR-6.2L-OSDP | Mobile: Yes | Smartcard: Yes | Mullion: Yes | Single-Gang: No | Keypad: Yes | OSDP: Yes | View details |
| CSR-6.4L | Mobile: Yes | Smartcard: Yes | Mullion: No | Single-Gang: Yes | Keypad: Yes | OSDP: No | View details |
| CSR-6.4L-OSDP | Mobile: Yes | Smartcard: Yes | Mullion: No | Single-Gang: Yes | Keypad: Yes | OSDP: Yes | View details |
| CSR-35L | Mobile: Yes | Smartcard: Yes | Mullion: Yes | Single-Gang: Yes | Keypad: No | OSDP: No | View details |
| CSR-35L-OSDP | Mobile: Yes | Smartcard: Yes | Mullion: Yes | Single-Gang: Yes | Keypad: No | OSDP: Yes | View details |
No approved readers match every selected feature. Clear a filter to broaden the results.
Only product-owner-approved reader records appear here. Columns without supported features in the matching readers are hidden. See product details and current data sheets for read ranges and final project specifications.
Wiegand Readers
3 models

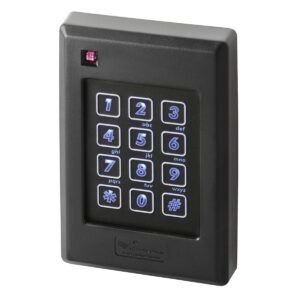

CSR-6.4L
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 2 inches (51 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- WIEGAND
- 13.56 MHz; 2.4 GHz

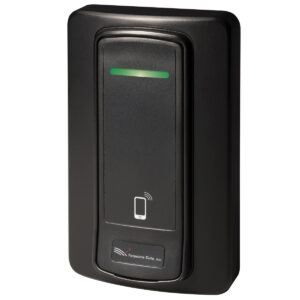

CSR-35L
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 1.5 inches (38 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- WIEGAND
- 13.56 MHz; 2.4 GHz
OSDP Readers
3 models
CSR-6.2L-OSDP
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 2 inches (51 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- OSDP
- 13.56 MHz; 2.4 GHz
CSR-6.4L-OSDP
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 2 inches (51 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- OSDP
- 13.56 MHz; 2.4 GHz
CSR-35L-OSDP
Mobile-ready mullion and single-gang wall switch box mount contactless smartcard reader; MIFARE® DESFire® EV1 and EV2 Support
- Read range
- Up to 1.5 inches (38 mm)
- Mobile range
- Up to 15 feet (4.6 m)
- OSDP
- 13.56 MHz; 2.4 GHz
Credentials
12 models

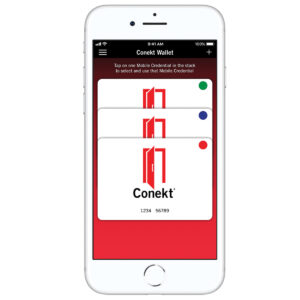

CMC-2
Mobile credential supporting BLE-enabled smartphones
- Range
- Up to 15 feet (4.6 m)
- 2.4 GHz

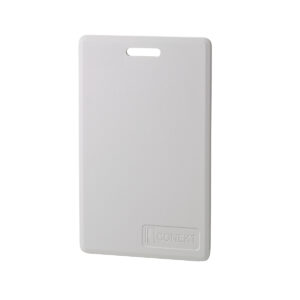

CSC-2
ISO14443-compliant, clamshell-style, printable. 2K memory standard; other memory sizes available. 13.56 MHz MIFARE® DESFire® EV1 and EV2 contactless smartcard.
- Range
- Up to 2.25 inches (57 mm)
- 13.56 MHz

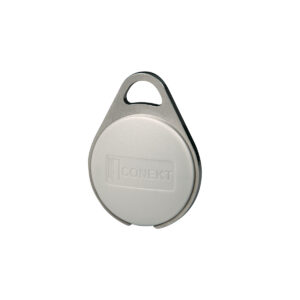

CSK-2
ISO14443-compliant, keyfob. 2K memory standard; other memory sizes available. 13.56 MHz MIFARE® DESFire® EV1 and EV2 contactless smartcard.
- Range
- Up to 1 inch (25 mm)
- 13.56 MHz
CSM-2P
ISO14443-compliant, ISO-style composite card. 2K memory standard; other memory sizes available. 13.56 MHz MIFARE® DESFire® EV1 and EV2 contactless smartcard.
- Range
- Up to 2.25 inches (57 mm)
- 13.56 MHz

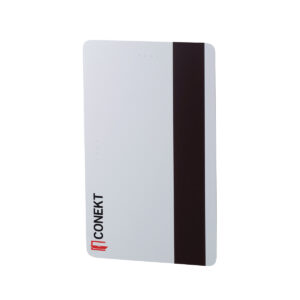

CSM-2S
ISO14443-compliant, ISO-style composite card with magnetic stripe. 2K memory standard; other memory sizes available. 13.56 MHz MIFARE® DESFire® EV1 and EV2 contactless smartcard.
- Range
- Up to 2.25 inches (57 mm)
- 13.56 MHz

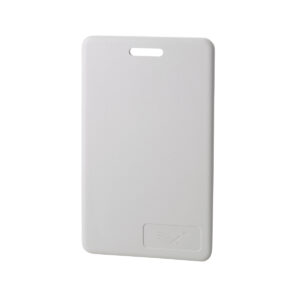

DC1-1
ISO14443-compliant, clamshell-style, printable. 1K memory standard. MIFARE®-compliant.
- Range
- Up to 3 inches (76 mm)
DC4-1
Clamshell; 4K memory. MIFARE®-compliant.
- Range
- Up to 3 inches (76 mm)

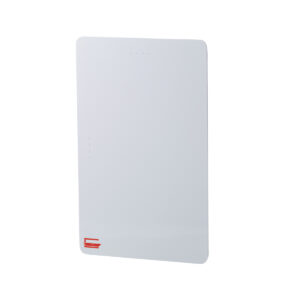

DE2-125
MIFARE® DESFire® EV2 contactless smartcard + proximity 125-kHz, printable. 2K EEPROM with fast programming
- Range
- Up to 2.5 inches (64 mm)

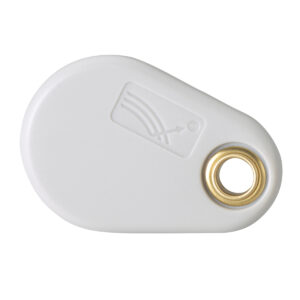

DK1-3
ISO14443-compliant, keyfob. 1K memory standard.
- Range
- Up to 0.75 inches (19 mm)
DK4-3
Key Fob; MIFARE®-compliant, with 4K memory.
- Range
- Up to 0.75 inches (19 mm)

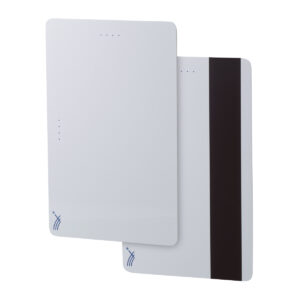

DM1-3
ISO14443-compliant, dye sublimation imaging. 1K memory standard. MIFARE®-compliant.
- Range
- Up to 2.75 inches (70 mm)
DM1-3S
ISO-Style, PVC Printable, w/ magnetic stripe; MIFARE®-compliant, with 1K memory.
- Range
- Up to 2.75 inches (70 mm)
Family resource library
Install guides, ordering documents, and shared files.
Model data sheets stay with their product cards. Shared files appear once and list the models they support.
